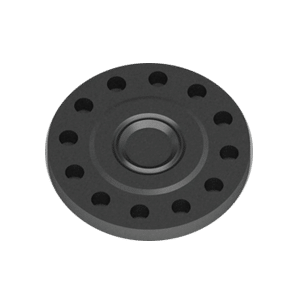

API 6A Flange
Type 6B Flanges:
Type 6B flanges are of the ring joint type and are not designed for face-to-face make-up. The connection make-up bolting force reacts on the metallic ring gasket. Type 6B flanges are of through bolted or studded design. Dimensions for 6B flanges blind type shall conform to Table 36, Table 37 & Table 38 with reference to figure no. 8 on pg. no. 108 of API 6A (19 th Edition, July 2004) as applicable.
Type 6BX Flanges:
Type 6BX flanges are of the ring joint type and designed with a raised face. Depending on the tolerances, the connection make-up bolting force may react on the raised face of the flange when the gasket has been properly seated. This support prevents damage to the flange or gasket from excessive bolt torque. Therefore, one of the flanges in 6 BX connection shall have a raised face. Type 6BX flanges are of through bolted or studded design. Face-to-face contact is not necessary for the proper functioning of the 6BX flange. Dimensions for 6BX flanges blind type shall conform to Table 46 of API 6A (19 th Edition, July 2004) as applicable.
[/vc_column_text][vc_separator color=”blue”][vc_row_inner css=”.vc_custom_1577425746063{margin-top: -60px !important;border-radius: 2px !important;}”][vc_column_inner width=”1/4″ css=”.vc_custom_1577425450743{margin-right: -50px !important;}”][vc_column_text css=”.vc_custom_1597052644126{padding-top: 10px !important;padding-bottom: 10px !important;padding-left: 70px !important;border-radius: 1px !important;}”]
Type
[/vc_column_text][vc_column_text css=”.vc_custom_1597052653001{margin-top: -30px !important;padding-top: 10px !important;padding-bottom: 10px !important;padding-left: 70px !important;}”]
Material
[/vc_column_text][vc_column_text css=”.vc_custom_1597147130182{margin-top: -10px !important;padding-top: 10px !important;padding-bottom: 10px !important;padding-left: 70px !important;}”]
Standard
[/vc_column_text][vc_column_text css=”.vc_custom_1597147151895{margin-top: -25px !important;padding-top: 10px !important;padding-bottom: 10px !important;padding-left: 70px !important;}”]
Size
[/vc_column_text][vc_column_text css=”.vc_custom_1597053192838{margin-top: -30px !important;padding-top: 10px !important;padding-bottom: 10px !important;padding-left: 70px !important;}”]
Pressure
[/vc_column_text][vc_column_text css=”.vc_custom_1597147162392{margin-top: -30px !important;padding-top: 10px !important;padding-bottom: 10px !important;padding-left: 70px !important;}”]
Packing
[/vc_column_text][vc_column_text css=”.vc_custom_1597147185887{margin-top: -35px !important;padding-top: 10px !important;padding-bottom: 10px !important;padding-left: 70px !important;}”]
Surface Treatment
[/vc_column_text][vc_column_text css=”.vc_custom_1597053537640{margin-top: -30px !important;padding-top: 10px !important;padding-bottom: 10px !important;padding-left: 70px !important;}”]
E-catalogue
[/vc_column_text][vc_column_text css=”.vc_custom_1597053553296{margin-top: -30px !important;padding-top: 10px !important;padding-bottom: 10px !important;padding-left: 70px !important;}”]
Usage
[/vc_column_text][/vc_column_inner][vc_column_inner width=”3/4″][vc_column_text css=”.vc_custom_1597142938148{padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;background-color: #e8e8e8 !important;}”]
Welding neck Flanges, Blind Flanges with Ring Joint Connection
[/vc_column_text][vc_column_text css=”.vc_custom_1597059215266{margin-top: -30px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;background-color: #e8e8e8 !important;}”]
Carbon steel: A105, SS400, SF440 RST37.2, S235JRG2, P250GH, C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
[/vc_column_text][vc_column_text css=”.vc_custom_1597142961932{margin-top: -30px !important;margin-bottom: -30px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;background-color: #e8e8e8 !important;}”]
API 6A
[/vc_column_text][vc_column_text css=”.vc_custom_1597146982122{margin-top: 35px !important;margin-bottom: -30px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;background-color: #e8e8e8 !important;}”]
1-13/16″ to 21-1/4″
[/vc_column_text][vc_column_text css=”.vc_custom_1597147035576{margin-top: 35px !important;margin-bottom: -30px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;background-color: #e8e8e8 !important;}”]
2000psi, 3000psi, 5000psi, 10000psi, 15000psi, 20000psi
[/vc_column_text][vc_column_text css=”.vc_custom_1597059332467{margin-top: 35px !important;margin-bottom: -30px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;background-color: #e8e8e8 !important;}”]
No Fumigate or Fumigate Plywood/Wood Pallet or Case
[/vc_column_text][vc_column_text css=”.vc_custom_1597147089407{margin-top: 35px !important;margin-bottom: -30px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;background-color: #e8e8e8 !important;}”]
Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
[/vc_column_text][vc_column_text css=”.vc_custom_1597059387003{margin-top: 35px !important;margin-bottom: -30px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;background-color: #e8e8e8 !important;}”]
Available , please visit catalogue of flange
[/vc_column_text][vc_column_text css=”.vc_custom_1597059407722{margin-top: 35px !important;margin-bottom: -30px !important;padding-top: 10px !important;padding-right: 10px !important;padding-bottom: 10px !important;padding-left: 10px !important;background-color: #e8e8e8 !important;}”]
Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_separator color=”blue” css=”.vc_custom_1577433092983{margin-top: 30px !important;}”][vc_single_image image=”1153″ img_size=”650×640″ alignment=”center”][/vc_column][vc_column width=”1/3″][vc_column_text css_animation=”bounceInDown” css=”.vc_custom_1597123891032{padding-top: 15px !important;padding-right: 15px !important;padding-bottom: 15px !important;padding-left: 15px !important;background-color: #f2f2f2 !important;}”]
LAP JOINT FLANGE
[/vc_column_text][vc_single_image image=”1130″ img_size=”200×200″ alignment=”center” onclick=”custom_link” img_link_target=”_blank” link=”https://eliteflowcontrol.uk/lap-joint-flange/”][vc_column_text css_animation=”bounceInDown” css=”.vc_custom_1597131653818{padding-top: 15px !important;padding-right: 15px !important;padding-bottom: 15px !important;padding-left: 15px !important;background-color: #f2f2f2 !important;}”]
BLIND FLANGE
[/vc_column_text][vc_single_image image=”1138″ img_size=”200×200″ alignment=”center” onclick=”custom_link” img_link_target=”_blank” link=”https://eliteflowcontrol.uk/blind-flange/”][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tour][vc_tta_section title=”API Flange, API 6A” tab_id=”1597055525024-12c678ae-846c”][vc_column_text css=”.vc_custom_1597142453245{padding-right: 35px !important;padding-left: 35px !important;}”]
Specification of API Flange, API 6A Flange
[/vc_column_text][vc_column_text css=”.vc_custom_1597142476404{padding-right: 35px !important;padding-left: 35px !important;}”]
| Flange Size | Working Pressure (PSI) | Outside Diameter | Number of Bolt Holes | Diameter of Bolt Holes | Length of Bolts | API Ring Gasket |
|---|---|---|---|---|---|---|
| 1-13/16″ | 10,000 | 7-3/8″ | 8 | 3/4″ | 5-1/4″ | BX-151 |
| 1-13/16″ | 15,000 | 8-3/16″ | 8 | 7/8″ | 6″ | BX-151 |
| 1-13/16″ | 20,000 | 10-1/8″ | 8 | 1″ | 7-3/4″ | BX-151 |
| 2-1/16″ | 2,000 | 6-1/2″ | 8 | 5/8″ | 5/8″ | R-23 |
| 2-1/16″ | 3,000/5,000 | 8-1/2″ | 8 | 7/8″ | 7/8″ | R-24 |
| 2-1/16″ | 10,000 | 7-7/8″ | 8 | 3/4″ | 3/4″ | BX-152 |
| 2-1/16″ | 15,000 | 8-3/4″ | 8 | 7/8″ | 7/8″ | BX-152 |
| 2-1/16″ | 20,000 | 11-5/16″ | 8 | 1-1/8″ | 1-1/8″ | BX-152 |
| 2-9/16″ | 2,000 | 7-1/2″ | 8 | 3/4″ | 5-1/4″ | R-26 |
| 2-9/16″ | 3,000/5,000 | 9-5/8″ | 8 | 1″ | 7″ | R-27 |
| 2-9/16″ | 10,000 | 9-1/8″ | 8 | 7/8″ | 6-1/4″ | BX-153 |
| 2-9/16″ | 15,000 | 10″ | 8 | 1″ | 7″ | BX-153 |
| 2-9/16″ | 20,000 | 12-13/16″ | 8 | 1-1/4″ | 9-1/2″ | BX-153 |
| 3-1/8″ | 2,000 | 8-1/4″ | 8 | 3/4″ | 5-1/2″ | R-31 |
| 3-1/8″ | 3,000 | 9-1/2″ | 8 | 7/8″ | 6-1/4″ | R-31 |
| 3-1/8″ | 5,000 | 10-1/2″ | 8 | 1-1/8″ | 7-3/4″ | R-35 |
| 3-1/16″ | 10,000 | 10-5/8″ | 8 | 1″ | 7-1/4″ | BX-154 |
| 3-1/16″ | 15,000 | 11-5/16″ | 8 | 1-1/8″ | 8″ | BX-154 |
| 3-1/16″ | 20,000 | 14-1/16″ | 8 | 1-3/8″ | 10-3/4″ | BX-154 |
| 4-1/16″ | 2,000 | 10-3/4″ | 8 | 7/8″ | 6-1/4″ | R-37 |
| 4-1/16″ | 3,000 | 11-1/2″ | 8 | 1-1/8″ | 7-1/2″ | R-37 |
| 4-1/16″ | 5,000 | 12-1/4″ | 8 | 1-1/8″ | 8-3/8″ | BX-155 |
| 4-1/16″ | 20,000 | 17-9/16″ | 8 | 1-3/4″ | 12-3/4″ | BX-155 |
| 5-1/8″ | 5,000 | 14-3/4″ | 8 | 1-1/2″ | 10-3/4″ | R-44 |
| 7-1/16″ | 2,000 | 14″ | 12 | 1″ | 7-1/2″ | R-45 |
| 7-1/16″ | 3,000 | 15″ | 12 | 1-1/8″ | 8-1/2″ | R-45 |
| 7-1/16″ | 5,000 | 15-1/2″ | 12 | 1-3/8″ | 11-1/4″ | R-46 |
| 7-1/16″ | 10,000 | 18-7/8″ | 12 | 1-1/2″ | 11-3/4″ | BX-156 |
| 7-1/16″ | 15,000 | 19-7/8″ | 16 | 1-1/2″ | 13″ | BX-156 |
| 7-1/16″ | 20,000 | 24-13/16″ | 16 | 2″ | 17-3/4″ | BX-156 |
| 9″ | 2,000 | 16-1/2″ | 12 | 1-1/8″ | 8-1/2″ | R-49 |
| 9″ | 3,000 | 18-1/2″ | 12 | 1-3/8″ | 9-1/2″ | R-49 |
| 9″ | 5,000″ | 19″ | 12 | 1-5/8″ | 12-1/2″ | R-50 |
| 9″ | 10,000 | 21-3/4″ | 16 | 1-1/2″ | 13-1/4″ | BX-157 |
| 9″ | 15,000 | 25-1/2″ | 16 | 1-7/8″ | 16″ | BX-157 |
| 11″ | 2,000 | 20″ | 16 | 1-1/4″ | 9-1/4″ | R-53 |
| 11″ | 3,000 | 21-1/2″ | 16 | 1-3/8″ | 10″ | R-53 |
| 11″ | 5,000 | 23″ | 12 | 1-7/8″ | 14-1/4″ | R-54 |
| 11″ | 10,000 | 25-3/4″ | 16 | 1-3/4″ | 15-3/8″ | BX-158 |
| 11″ | 15,000 | 32″ | 20 | 2″ | 19-1/2″ | BX-158 |
| 13-5/8″ | 2,000 | 22″ | 20 | 1-1/4″ | 9-1/2″ | R-57 |
| 13-5/8″ | 3,000 | 24″ | 20 | 1-3/8″ | 10-3/4″ | R-57 |
| 13-5/8″ | 5,000 | 26-1/2″ | 16 | 1-5/8″ | 12-3/4″ | BX-160 |
| 13-5/8″ | 10,000 | 30-1/4″ | 20 | 1-7/8″ | 17-3/4″ | BX-159 |
| 13-5/8″ | 15,000 | 34-7/8″ | 20 | 2-1/4″ | 21″ | BX-159 |
| 16-3/4″ | 2,000 | 27″ | 20 | 1-1/2″ | 10-3/4″ | R-65 |
| 16-3/4″ | 3,000 | 27-3/4″ | 20 | 1-5/8″ | 12-1/4″ | R-66 |
| 16-3/4″ | 5,000 | 30-3/8″ | 16 | 1-78″ | 14-3/4″ | BX-162 |
| 16-3/4″ | 10,000 | 34-5/16″ | 24 | 1-7/8″ | 17-3/4″ | BX-162 |
| 18-3/4″ | 5,000 | 35-5/8″ | 20 | 2″ | 18″ | BX-163 |
| 16-3/4″ | 10,000 | 40-15/16″ | 24 | 2-1/4″ | 23″ | BX-164 |
| 20-3/4″ | 3,000 | 33-3/4″ | 20 | 2″ | 15-1/4″ | R-74 |
| 21-1/4″ | 2,000 | 32″ | 24 | 1-5/8″ | 12-1/2″ | R-73 |
| 21-1/4″ | 5,000 | 39″ | 24 | 2″ | 19″ | BX-165 |
| 21-1/4″ | 10,000 | 45″ | 24 | 2-1/2″ | 24-3/4″ | BX-166 |
| 26-3/4″ | 2,000 | 41″ | 20 | 1-3/4″ | 14-1/4″ | BX-167 |
| 21-1/4″ | 3,000 | 43-3/8″ | 24 | 2″ | 17-1/2″ | BX-168 |
