| Model | EB7 |
Size | 1” to 6” |
Set Pressure | PN10~PN400（ANSI 150Lbs~ANSI 2500Lbs |
Connection | Flange connection standard is according to DIN or ANSI, another standard |
How Do Back Pressure Valves Work?
This valve is self-support type, do axial movement along with valve disc by spring force function, so as to generate differential pressure around the back pressure valve. Meanwhile, the valve seat hole opening bigger and bigger gradually until pressure differential reaches the setting point.
Installation
In order to make the valve achieve to the best performance, BPV should be installed in downstream of the important protected valve, since valve outlet velocity is high, the installation location should be close deaerator or water supply tank.
Maintenance
Be easy to operation and maintenance. We can provide installation and maintenance manuals.
How Do A Back Pressure Valves Install?
In order to make the valve to achieve best performance, YB7 should be installed in the downstream of the protected valve, since valve outlet velocity flow is high, installation location should near close to deaerator or tank.

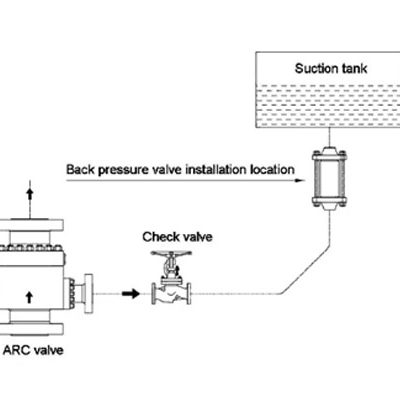

Installation Location Chart
EB7
Drawing
Material Temperature Range
| Body material Sealing material | A105 | LF2 | F304 | F316 |
|---|---|---|---|---|
| NBR | -20～+100 | -30～+100 | -30～+100 | -30～+100 |
| FKM | -20～+200 | -40～+200 | -40～+200 | -40～+200 |
| PTFE | -20～+230 | -40～+230 | -80～+230 | -80～+230 |
| Stainless steel gasket | -20～+300 | -40～+300 | -196～+300 | -196～+300 |
Model Selection
| EB | 7 | Nominal Pressure | Body Material | Nominal Diameter | Structure Type |
| Back Pressure Valve | 7 series | PN16=PN16 Class 150LB =CL150 | C=A105 LC=LF2 P=304 PL=304L R=316 RL=316L | DN50=50 NPS2”=2” | D=Water type F=Flange connection S = Overflow function |
| For example, 7 series BPV, Class 1500#, the body material is A105, diameter 2″, flange type connection, Model: EB7-PN40-C-50-F | |||||
